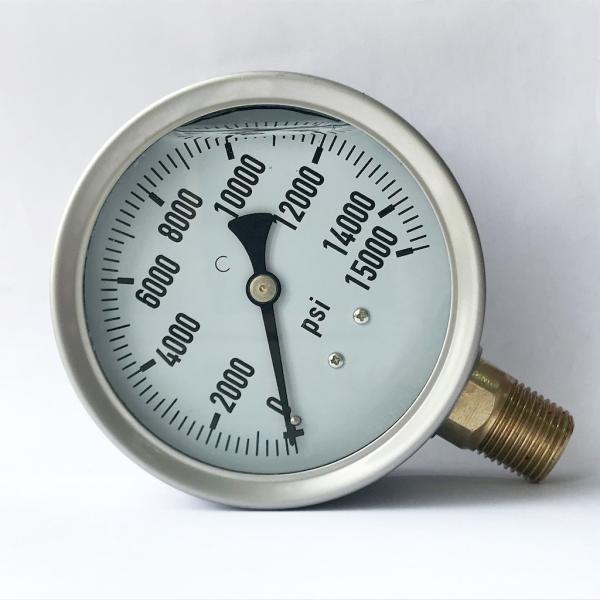

100mm 15000 Psi Bayonet Ring Stainless Steel Pressure Gauge Glycerin Fillable Plumbing Manometer
Description
Stainless steel pressure gauge widely used in petroleum, chemicals, chemical fiber, metallurgy, power plants and other industrial sectors in the decay resistance is higher in the process of measuring the various fluid medium pressure, temperature at 85 ℃ following gas liquids Pressure applied to strong corrosive stainless steel components for the detection of medium and poor external corrosion environment. Can substitute the general pressure gauges.
Applications
Injection Molding Device, hydraulic
Machine building and plant construction
Heating and air-conditioning technology
Fire sprinkler systems, compressor
Special features
Design per EN 837-1
Nominal size 40, 50, 63, 80, 100 and 160
Scale ranges up to 0 ... 1000 bar
Specifications
| Design | EN 837-1 |
| Nominal size | 100mm |
| Accuracy | KL 1.0 |
| Pressure range | 15000 psi, customized |
| Pressure limitation | Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value |
| Permissible temperature | Ambient: -40 ... +60 °C
Medium: +80 °C maximum |
| Temperature effect | When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale |
| Process connection | Brass |
| Pressure element | Bourdon tube, brass |
| Movement | Copper alloy |
| Dial | Aluminium, white, with pointer stop pin
Black lettering |
| Pointer | Aluminium |
| Case | Stainless steel |
| Window | Plastic, glass |
| Options | Other process connection thread
Surface mounting flange
Mounting bracket |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
