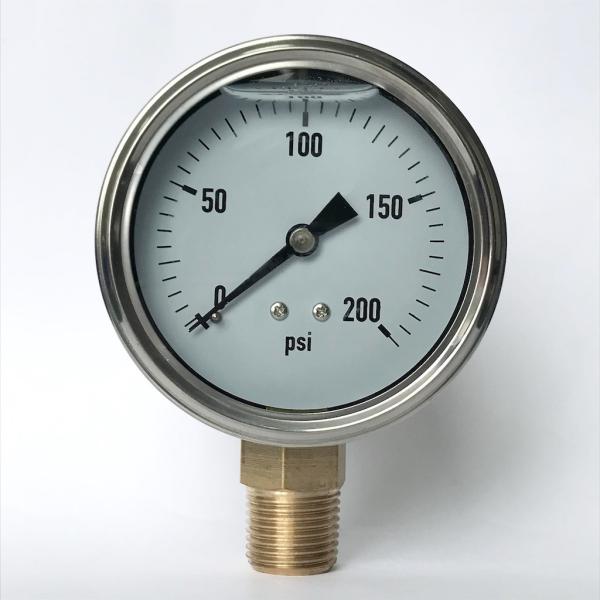

200 Psi 3 Inch Pressure Gauge 316SS Brass Wetted Stainless Steel Pressure Gauge

Brand Name : WESEN or Customized

Model Number : M03.01.75.N

Certification : CE, ISO

Place of Origin : China

MOQ : 100 Pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000 Pieces per Month

Delivery Time : 3~4 Weeks

Packaging Details : Carton

Size : 75mm

Mount : Lower

Pressure Range : 200 psi or Customized

Case Material : 316 SS, 304 SS

Lens Material : Instrument glass

Bourton Tube : Phosphor bronze

Movement : Brass

Dial : Aluminum

Accuracy : 1.6

Liquid : Silicone oil, glycerin

Contact Now

3 Inches 200 psi Stainless Steel Case Brass Wetted Parts 1/2" NPT Lower Mount Liquid Filled Pressure Gauge

Description

Not only does the liquid inside of these gauges help control the effects of vibrations, but the liquid also acts as a lubricant for the moving parts of the gauge. All of those factors plus stainless-steel with reinforced thermo plastic construction makes this one of the most durable gauges for purchase.

Applications

For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 75mm

Accuracy

 Acc.1.6
Pressure range 200 psi (customized)

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type
Movement Brass
Dial Aluminium, colorful, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 1/2 G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

200 Psi 3 Inch Pressure Gauge 316SS Brass Wetted Stainless Steel Pressure Gauge

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

200 Psi 3 Inch Pressure Gauge 316SS Brass Wetted Stainless Steel Pressure Gauge
