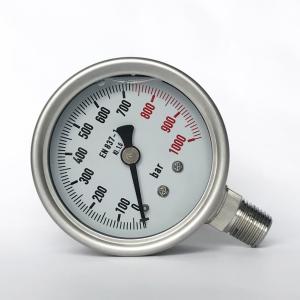

1000 Bar 2.5 Inches Liquid Filled Pressure Gauge SS Manometer Glycerin Filled

Product Categories
Wesen Technologies (Shanghai) Co., Ltd.
Contact Now

1000 Bar 2.5 Inches Liquid Filled Pressure Gauge SS Manometer Glycerin Filled

Brand Name : WESEN or Customized

Model Number : M03.01.063.N

Certification : CE, ISO

Place of Origin : China

MOQ : 100 Pieces

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000 Pieces per Month

Delivery Time : 3~4 Weeks

Packaging Details : Carton

Size : 63mm

Mount : Bottom

Pressure Range : 1000 bar or Customized

Case Material : 316 SS, 304 SS

Lens Material : Instrument glass

Bourton Tube : SS 316

Movement : SS 304

Socket : SS 316

Accuracy : 1.6

Liquid : Silicone oil, glycerin

Contact Now

2.5 Inches 1000 bar All SS Manometer 1/4" NPT Bayonet Ring Liquid Filled Pressure Gauge

Description

Where vibration, corrosion and pulsating conditions exist , the Wesen stainless steel cased liquid filled pressure gauges are designed to meet the most severe applications. Available in 2 1/2" and 4"T stainless steel connection. 2 1/2" dial ANSI B40.1 Grade B 4" dial ANSI B40.1 Grade A.

Applications

For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 Acc. 1.6
Pressure range 1000 bar (customized)

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, colorful, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 1/4 G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

1000 Bar 2.5 Inches Liquid Filled Pressure Gauge SS Manometer Glycerin Filled

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

1000 Bar 2.5 Inches Liquid Filled Pressure Gauge SS Manometer Glycerin Filled
